Rotary System

lt adopts dual motor structure with large torque. Especially suitable for drilling in loose and fissured rocks.Significantly improve porosity and reduce losses,Simple structure and easy maintenance.

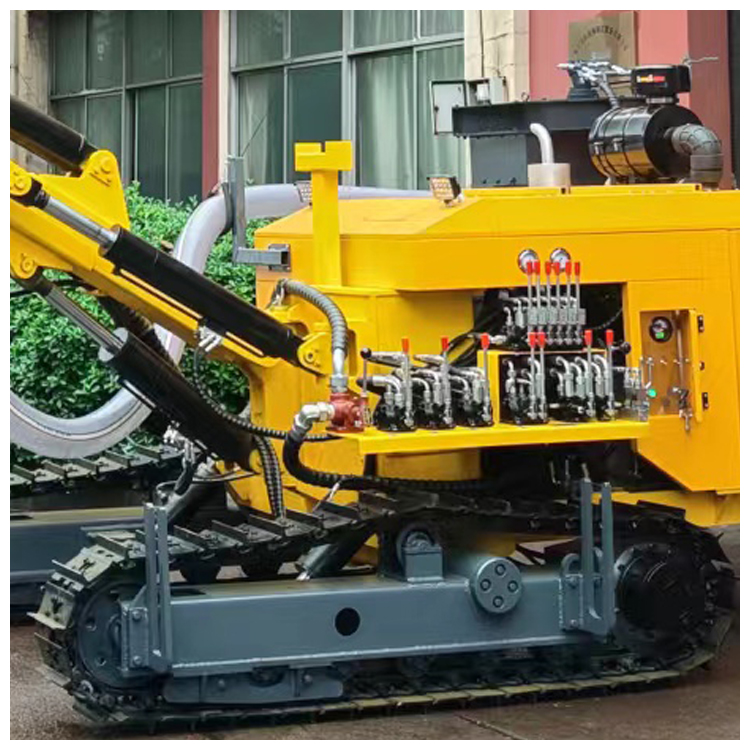

Control Console

The hydraulic operating platform adopts an upper and lower two-layer duplex structure, which is waterproof and dustproof and easy to operate Centralized control of the hydraulic valve group, all operations are simple and reliable, and replacement and troubleshooting are quick and easy.

Instrument Cluster

The instrument display has a high degree of integration and can monitor various parameters in real time

The working mode can be intelligently switched according to

The environmentand operating conditions and has self-diagnosis and alarm functions.

Chassis Components

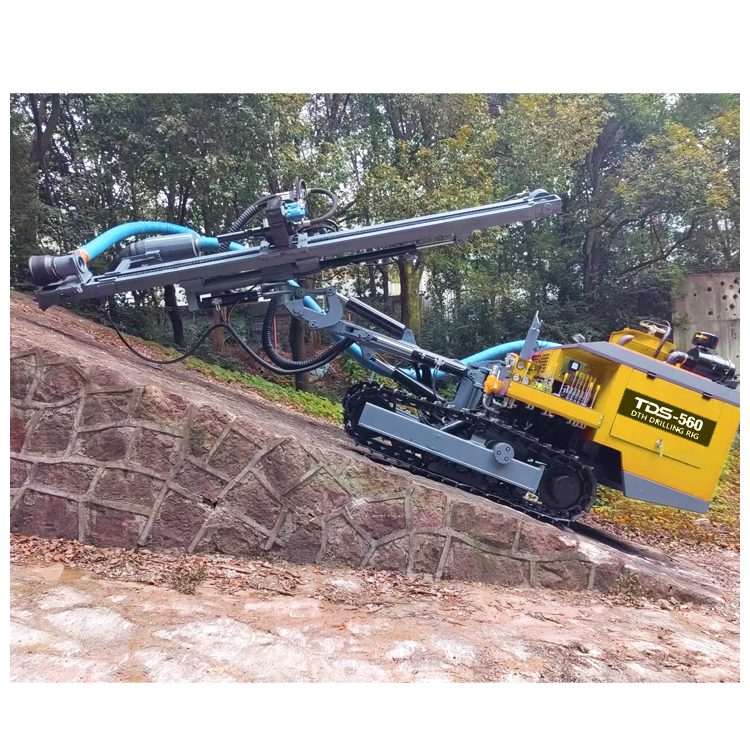

lt adopts special four wheels and tracks for engineering excavators,and is equipped with leveling cylinders to adapt to various conditions.Workplace, strong climbing ability and low failure rate it adopts plunger type traveling motor with large displacement, full power and stable and reliable traveling The chassis adopts the overall gravity axis structure design, which has good off-road performance and strong climbing ability.The overall strength of the drilling rig makes walking safer.

Power Components

The longitudinal diesel engine design is very convenient for maintenance. lt is equipped with a Yuchai four-cylinder National ll diesel engine, which is fully meet the latest emission standards,environmental protection and energy saving Sufficient power reserve, strong adaptability to altitude, temperature and humidity. Adopt maintenance-free battery, easy to use, long life and excellent performance. The chassis adopts door openings on both sides, providing large space and convenient maintenance.
