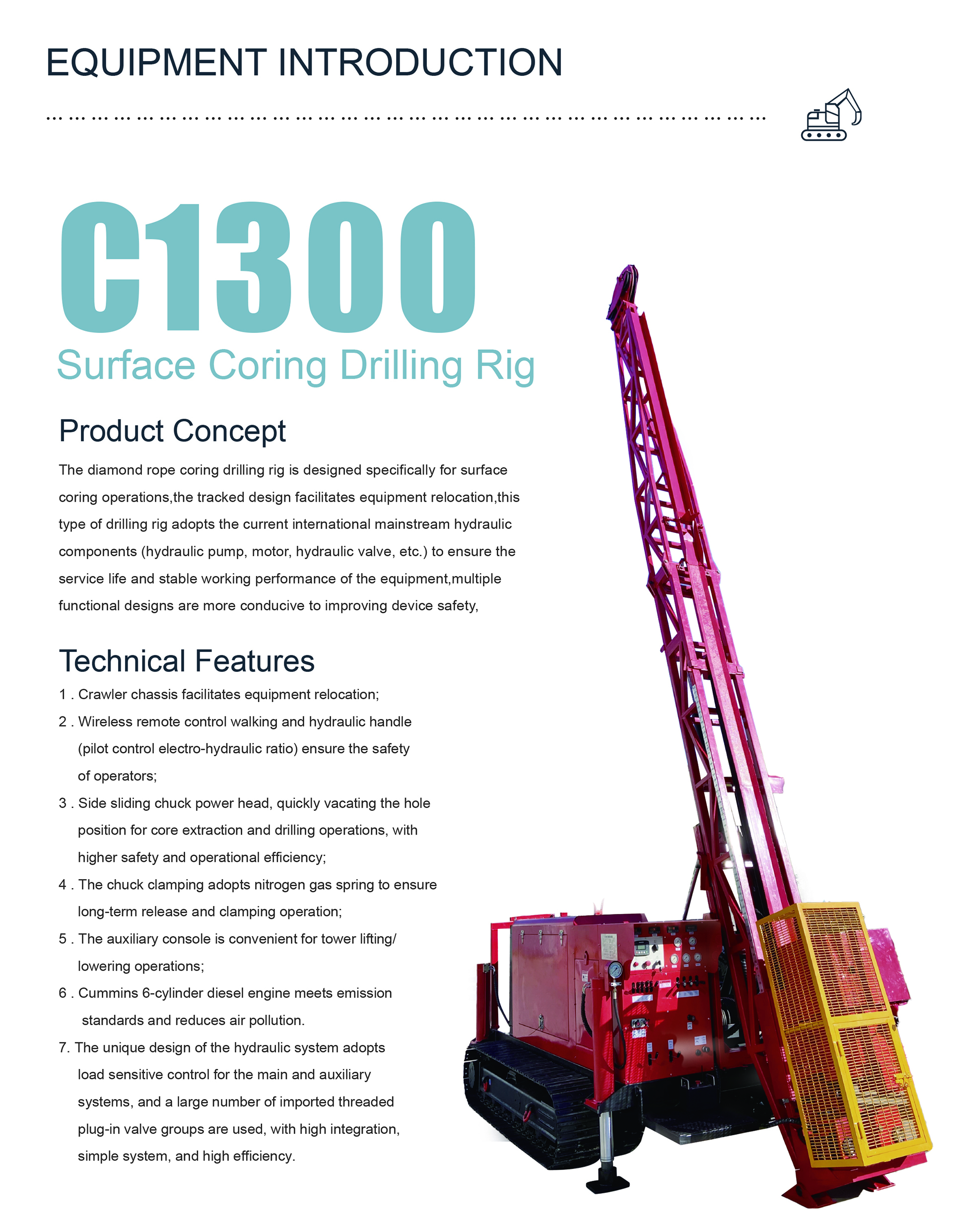

Product Concept

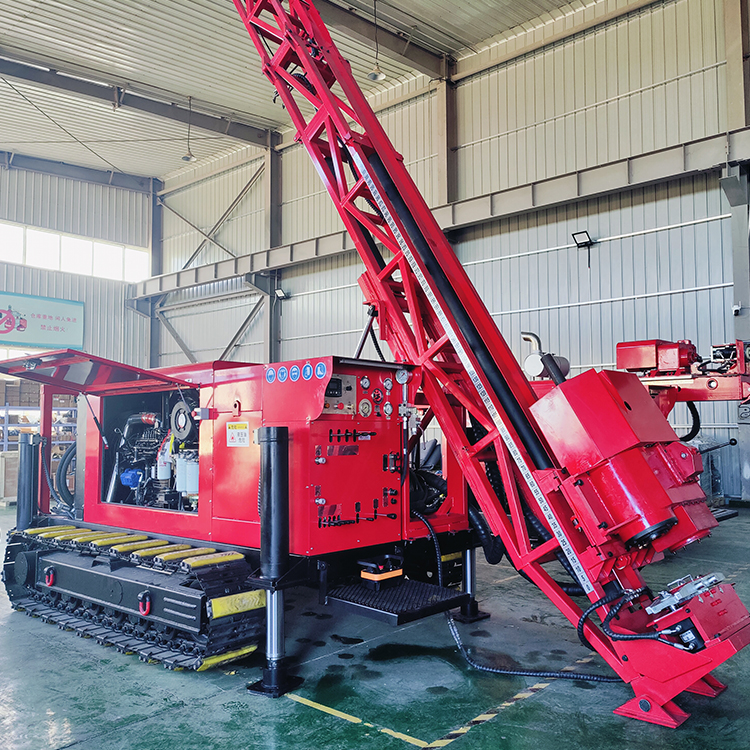

The diamond rope coring drilling rig is designed specifically for surfacecoring operations,the tracked design facilitates equipment relocation,thistype of drilling rig adopts the current international mainstream hydrauliccomponents (hydraulic pump, motor, hydraulic valve, etc.) to ensure theservice life and stable working performance of the equipment,multiplefunctional designs are more conducive to improving device safety

Technical Features

1.Crawler design, hydraulic drive for all machine functions,the equipment is operated by remote control and hydraulic handle (pilot controlled electro-hydraulic ratio) for walking,ensure personnel safety during equipment movement.

2.Side sliding chuck power head,quickly release the hole position for core extraction operation,higher safety and operational efficiency.

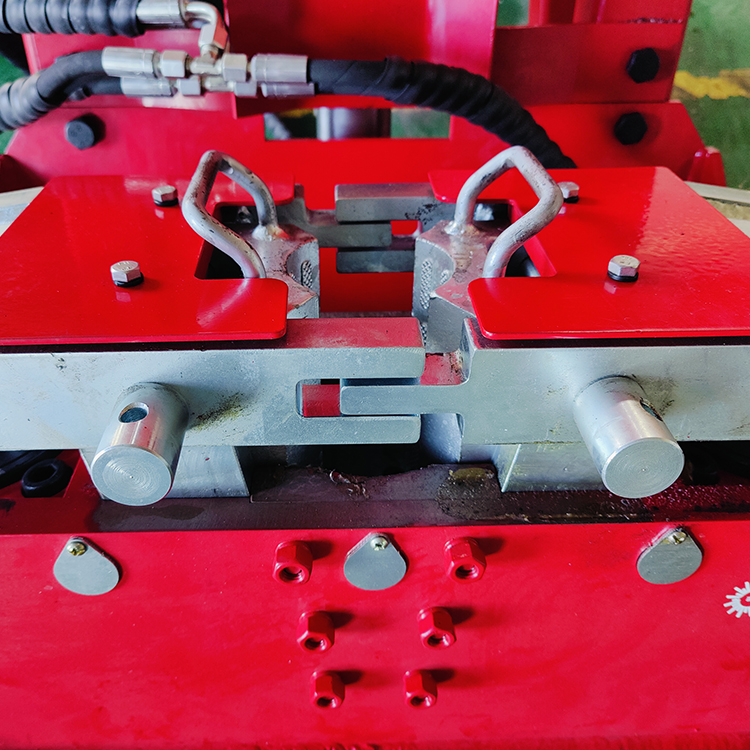

3.The chuck clamping adopts nitrogen gas spring to ensure longterm release and clamping operation.

4.The chain double speed mechanism ensures that the equipment has a travel distance of 3200mm, reducing the weight of the equipment.

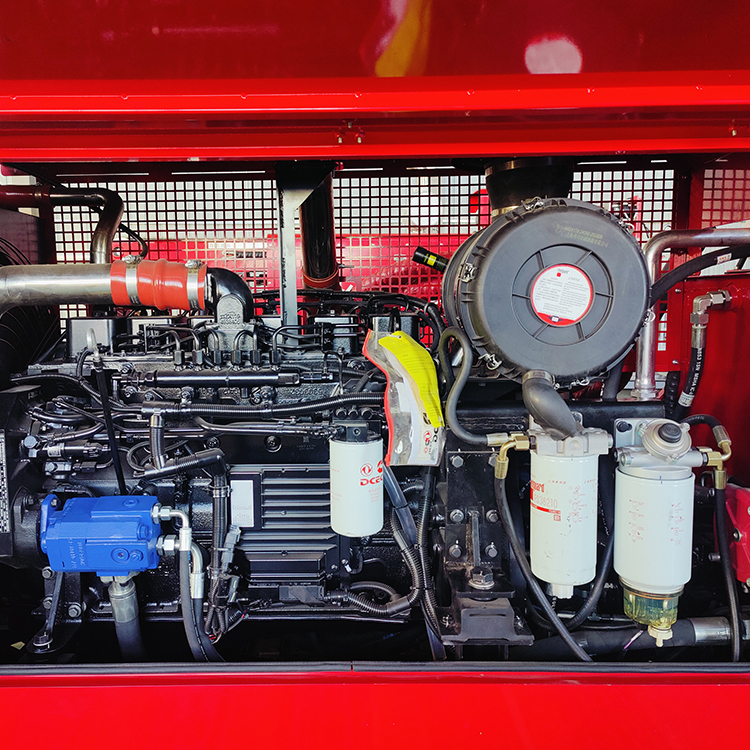

5.Cummins 4-cylinder diesel engine meets emission standards and reduces air pollution.

6.Aluminum alloy mast, lightweight, easy to install and disassemble.

7.The compact body structure facilitates the relocation of equipment on narrow and steep roads.

8.The unique design of the hydraulic system adopts load sensitive control for the main and auxiliary systems, and a large number of imported threaded plug-in valve groups are used, with high integration, simple system, and high efficiency.
